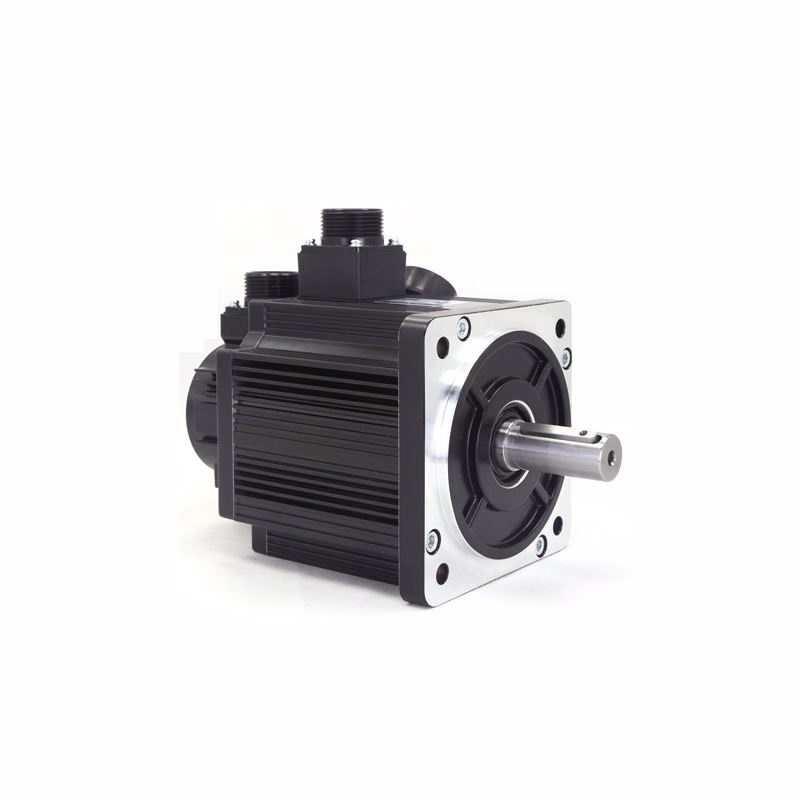

Single-Phase 220V CNC Servo Motor Package with Wa | RFQ Sourcing Details

Product Description Details: Model no. Rated Voltage(V) Output Power(w) Rated Torque(N.m) Rated Speed(RPM) Length(mm) Shaft DIA(mm) 130AEA10025-SH AEA10015-SH AEA15025-SH AEA20025-SH AEA15015-SH AEA23015-SH AEA26025-SH AEA38025-SH The function of AC servo motor driver.

The input power Single phase or three phase AC220V -15~+10% 50/60.

Hz environment temperature Using: 0~55 Storage: -20~80 humidity Below 90% RH No dewing vibration Belown0.5G(4.9m/S2),10-60 no continue running Control mode 1 Torque mode (internal or external) 2 speed mode (internal or external) 3 Position mode (internal orexternal) 4 Position/velocity model 5 Position/torque model 6 Speed/torque model Control input servo enables,alarm reset, Forward driving is prohibited, Reverse driving is prohibited , External forward torque is limited , external reverse torque is limited, Emergency stop, Zero speed clamp , 1 Internal speed command option 1, 2 Internal speed command option 2 3 Internal speed command option 3, 1 The internal torque command option 1 2 The internal torque command option 2 Control mode switch, Gain switch, 1 Electronic gear molecular option 1, 2 Electronic gear molecular option 2,Instructions for, Position deviation to clear, Pulse input is prohibited, Proportional control, The origin return to trigger, The origin return reference point.

1 Internal location option 1, 2 Internal location option 2, Trigger internal position command, Suspend internal position command Control the output Alarm detection, Servo ready, Emergency stop checked out, Positioning to complete, Speed to reach, Reach the predetermined torque, Zero speed detection, Servo motor current, Electromagnetic brake, The origin return to complete, Located close to, torque limit, speed limit, Tracking arrive torque command The encoder feedback 2500p/r,15 line increment model, differential output Communication mode RS-232 OR RS-485 Display and operation 1.five LED display 2.Four buttons Braking way Through the internal/external braking resistance braking energy Cooling way Air cooled (heat transfer film, the strong cold wind fan) Power range ≤7.5KW Installation environment conditions 1.Working environment: 0 ~
