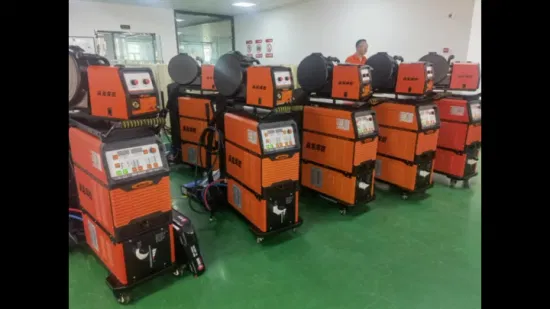

High Speed Double Pulse MIG Welder with Water Coo | RFQ Sourcing Details
Mig Mag Welders · Quote on request
This is a product procurement detail page: check specs, images, category context and related sourcing paths before sending an RFQ.
Product specs
Buyer's Digest
Use this page as a product-first sourcing checkpoint before sending an RFQ. Category: Mig Mag Welders. Confirm application fit, capacity, materials, destination, lead time and compliance requirements before comparing suppliers.
Original product description
Functions: pulse MIG/MAG, common MIG/MAG, manual arc welding, ascending arc ignition TIG, arc gouging Application industry: high speed train, pressure vessel, car modification, yacht, high voltage switch Characteristics 1. The CPU+DSP full digital high-precision control system, double pulse function 2.
Users can store customized welding process parameters 3. The machine has the protection functions of short circuit protection, overheat protection, grid abnormal protection, wire blocking protection, boot protection 4.
Special program design for welding aluminum solves the difficult problems of arc initiation melt and arc closure crater when welding aluminum 5.
The machine has 2T , 4T , special 4T , spot welding four operating modes, with a unified or separate adjustment mode Accessories Air cooling standard accessories Water cooling standard accessories Optional a ccessories 1. 1 set of air cooling wire feeder (5m cable) 2. 1 set of 2m grounding cable 3.
1 set of 3m air cooling welding torch 4. 1 piece of argon gas meter (25L/min) 1. 1 set of water cooling wire feeder (1.8m cable) 2. 1 set of water chiller 3. 1 set of 3m grounding cable 4. 1 set of 3m water cooling welding torch 5. 1 set of welding machine cart 6. 1 piece of argon gas meter (25L/min) 1.
Gas proportioner 2. Digital remote control box 3. CO 2 gas meter(AC36V 25L/min) 4. Push and pull wire welding torch 5. Digital display wire feeder 6. Front and rear casters of wire feeder 7. W elding machine wheel steel frame Product Parameters Model MIG-350DP MIG-500DP Input voltage/frequency AC380V±10% 50.
Hz AC380V±10% 50.
Hz I nput capacity (KVA) 13 24 Input current (A) 19 36 Output voltage (V) 31.5 39 Load duty cycle (%) 80 80 Output no-load voltage (V) 76 76 Output current range (A) Output voltage range (V) Wire feeding type Push/push and pull wire Push/push and pull wire Gas flow (L/min) Torch cooling method Air/water cooling Air/water cooling Enclosure protection class IP21S IP21S Insulation class H H Dimensions (mm) 640*320*590 (air cooling) 1130*600*1410 (water cooling) Weight (kg) 42/142 52/152
High | Applications and Buyer Notes
High is organized as a sourcing-ready Mig Mag Welders reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time questions be
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- MIG MAG WeldersBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Weight
- (kg) 42/142 52/152Based on visible page data; confirm exact value in the RFQ.
- feeder
- 7. W elding machine wheel steel frameBased on visible page data; confirm exact value in the RFQ.
- voltage
- range (V) Wire feedingBased on visible page data; confirm exact value in the RFQ.
- capacity
- (KVA) 13 24 Input current (A) 19 36 OutputBased on visible page data; confirm exact value in the RFQ.
- standard
- accessories Optional a ccessories 1. 1 set of air c ing wireBased on visible page data; confirm exact value in the RFQ.
- Application
- industry: high speed train, pressure vessel, car modification, yacht, highBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kw Spot Welding Machine Automatic Welder Is Suitable For Metal Mesh Frame Shelf WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135a Flux Core Mig Welder 220v 3 In 1 Mig Arc Lift Tig Welding Machine Igbt Dc Inverter Gasless WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500w Air Cooling Handheld Semi Auto Fiber Laser Welding Machine For Sale W Handheld LaseThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15m Pulse Width Fiber Laser Welding Machine For Electronic IndustryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 160mm Hydraulic Pvdf Pe Pipe Butt Fusion Welding Machine 2026 Plastic Welding Machinery ManufacturThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000w Water Cooling Handheld Laser Welder Multi Function Fiber Laser System 2026 Handheld Laser WeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 200w Spot Laser Welding Machine Jewelry Portable Table Laser Soldering Welding Machine Welding MacThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 In 1 Cnc Fiber Portable Metal Handheld Laser Welding Machine With 1500w Price 2000w 3000w HandheldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Phase Mig Welder 350 Amp Arc Welder Co2 Gas Mig Mag Mma Aluminum Welding MachineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 350a 500a 600a Igbt Aluminum Mig Welding Machine Aland Welding Machines Manufacturer Mig Tig Mma LThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Arc Welding Machines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laser And Resistance Welding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plasma And Flame Cutting categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
MIG-200P 6-in-1 Double Pulse MIG Aluminum Welder 200ARequest Quote

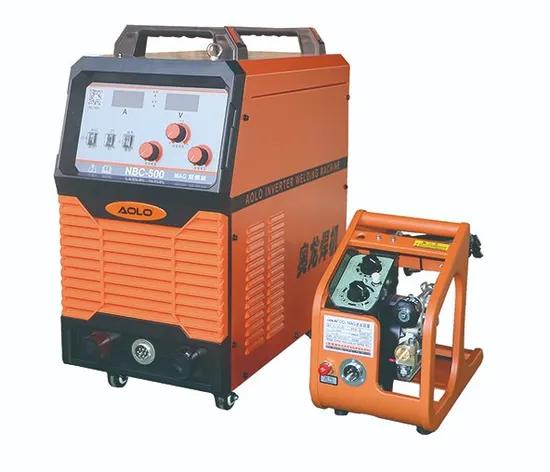

High Performance CO2 Gas Shielded Welding Machine Mag/MIG Welder - 2026 MIG, CO2 Welding price | MadRequest Quote

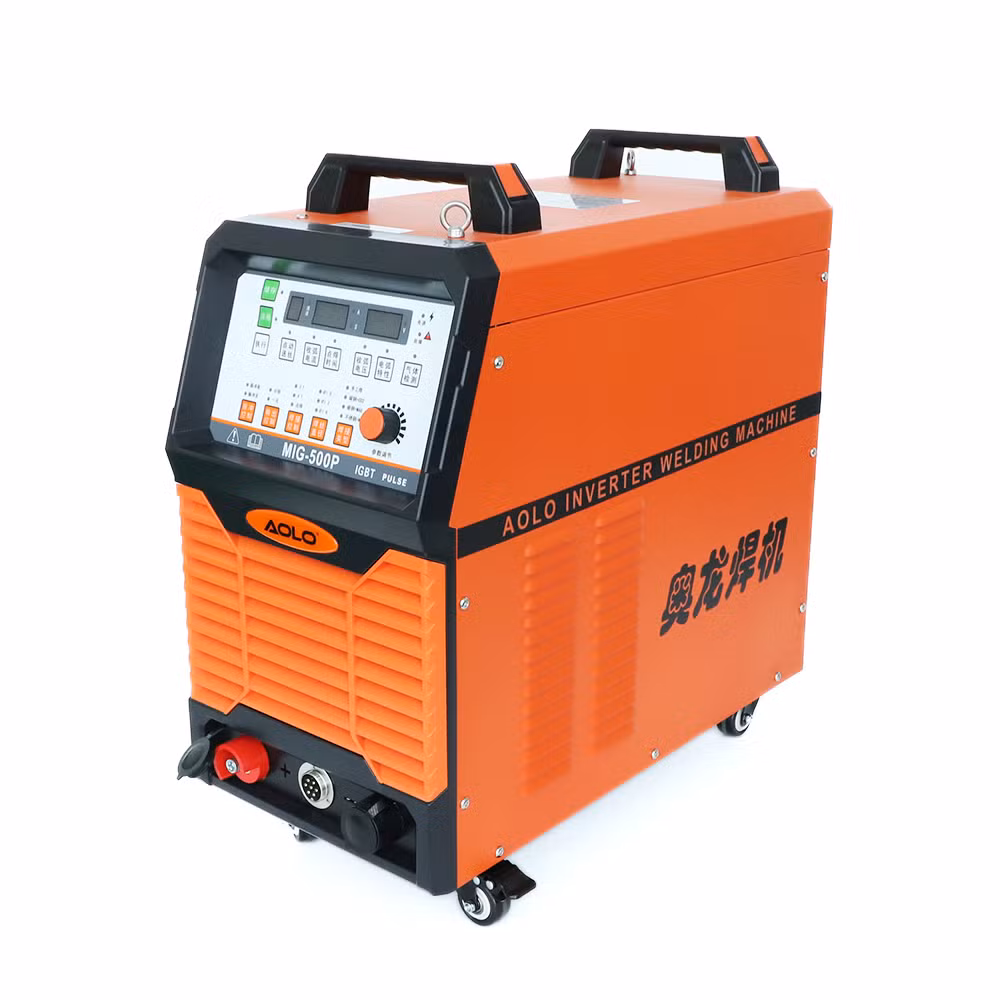

Low Spatter Pulse Gas Shielded Welding Machine MIG/Mag Welder - Welding Machine and SolderRequest Quote
MTC-215 6-in-1 MIG Multi-Process Welder with HF TIG & Plasma CutterRequest Quote
MIG-200 Multi-Process MIG Aluminum Welder | DoughtyRequest Quote

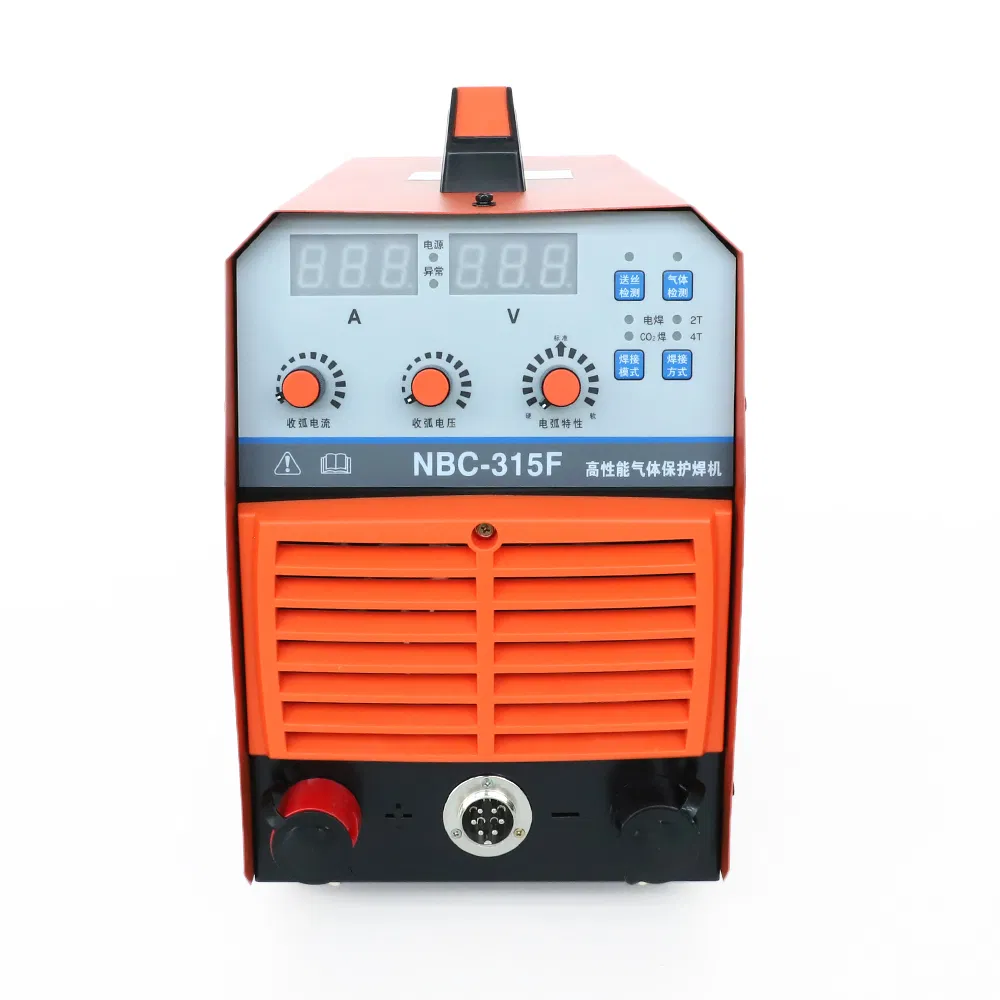

IGBT Inverter CO2 Gas Shielded Welding Machine MIG Welder - Welding Machine and SolderRequest QuoteWeldCutSource related sourcing paths
