The CSW Series is a vertical automatic circular seam welding machine designed around two main sections: a purpose-built circular seam automation mechanism and a standard welding power source. The machine uses a converter motor, reduction box, and three-jaw clamp to rotate the workpiece with stepless speed adjustment.
Pneumatic cylinders operate the clamp pressing, release and retraction functions as well as the welding torch movement. A precision micro-adjustment mechanism allows the torch position to be refined for the welding setup.
The integrated microcomputer control system is described as compact, reliable, and designed for a simple interface, modification, and maintenance.
Supported operating data includes a welding-speed range of 200–1,000 mm/min, motor power from 50 to 1,500 W, gas pressure from 0.4 to 0.6 MPa, and a maximum welding diameter of 488 mm. Listed input options are 220, 380, 440, or 480 V at 50/60 Hz.
The machine uses water cooling and has a vertical, one-body configuration. The automation mechanism may be paired with a standard welding source for TIG, MIG, MAG, SAW, or PAW processes. It is also described as capable of working with welding power sources from other brands.
Because configurations and sizes vary by model, buyers should confirm the selected welding process, power-source package, workpiece geometry, required tooling, electrical supply, and exact machine dimensions before ordering.
Buyers should also verify whether the stated 488 mm maximum diameter applies to their proposed fixture and joint design, and request confirmation of included accessories, controls, installation requirements, and shipment configuration.
CSW | Applications and Buyer Notes
CSW is organized as a sourcing-ready Arc Welding Machines reference. The page combines visible product or company data with structured procurement cues so buyers can compare application fit, specifications, quantity, quality requirements and lead-time question
Applications
- Initial shortlist building for related product or supplier options.
- Specification and application fit review before bulk purchasing.
- Category, keyword and detail-page comparison before sending an RFQ.
Key specifications
- Category
- Arc Welding MachinesBased on visible page data; confirm exact value in the RFQ.
- Unit
- setBased on visible page data; confirm exact value in the RFQ.
- Warranty
- One yearBased on visible page data; confirm exact value in the RFQ.
- Motor Power
- 50–1,500 WBased on visible page data; confirm exact value in the RFQ.
- Model Series
- CSW SeriesBased on visible page data; confirm exact value in the RFQ.
- Customization
- AvailableBased on visible page data; confirm exact value in the RFQ.
- Machine Style
- Vertical, one-body typeBased on visible page data; confirm exact value in the RFQ.
- Welding Speed
- 200–1,000 mm/minBased on visible page data; confirm exact value in the RFQ.
Buyer tips
- State quantity range and split-delivery needs before price comparison.
- Add certification, material or inspection standards when they affect acceptance.
- For time-sensitive projects, include target arrival date and destination.
- For special applications, describe operating condition, installation environment and duty cycle.
FAQ
What should buyers confirm first?
Confirm application, specification, quantity, destination and lead-time requirements before comparing offers.
Can buyers inquire when specs are incomplete?
Yes. Add model, material, size, use case and inspection needs in the RFQ to make replies comparable.
How should this listing be evaluated?
Check title, category, specifications and related keywords against the actual sourcing requirement.
Source mix: ugc
Key specifications
Product sourcing keywords
These terms come from the title, visible copy and specifications, and link into matching aggregate pages.
Continue from this detail page into sourcing structure
These links connect the detail page back to category hubs, procurement aggregates and knowledge pages so new inventory is not isolated.
This URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 100kw Spot Welding Machine Automatic Welder Is Suitable For Metal Mesh Frame Shelf WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 135a Flux Core Mig Welder 220v 3 In 1 Mig Arc Lift Tig Welding Machine Igbt Dc Inverter Gasless WeldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 1500w Air Cooling Handheld Semi Auto Fiber Laser Welding Machine For Sale W Handheld LaseThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 15m Pulse Width Fiber Laser Welding Machine For Electronic IndustryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 160mm Hydraulic Pvdf Pe Pipe Butt Fusion Welding Machine 2026 Plastic Welding Machinery ManufacturThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 2000w Water Cooling Handheld Laser Welder Multi Function Fiber Laser System 2026 Handheld Laser WeThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 200w Spot Laser Welding Machine Jewelry Portable Table Laser Soldering Welding Machine Welding MacThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 In 1 Cnc Fiber Portable Metal Handheld Laser Welding Machine With 1500w Price 2000w 3000w HandheldThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 3 Phase Mig Welder 350 Amp Arc Welder Co2 Gas Mig Mag Mma Aluminum Welding MachineThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path 350a 500a 600a Igbt Aluminum Mig Welding Machine Aland Welding Machines Manufacturer Mig Tig Mma LThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Arc Welding Machines categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Laser And Resistance Welding categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Internal sourcing path Plasma And Flame Cutting categoryThis URL was refreshed but still has no Googlebot evidence, so it is promoted into shared internal links for crawl discovery.
Automatic TIG Hot-Wire Vertical and Horizontal Weld Overlay SystemRequest Quote
LMH4000 Gantry-Type Automatic Submerged Arc Welding Machine for H-Beam ProductionRequest Quote
AGW/EGW Automatic Tank Construction Arc Welding Machine SystemRequest Quote
Automatic Submerged-Arc Girth Welding Machine for Tank ConstructionRequest Quote

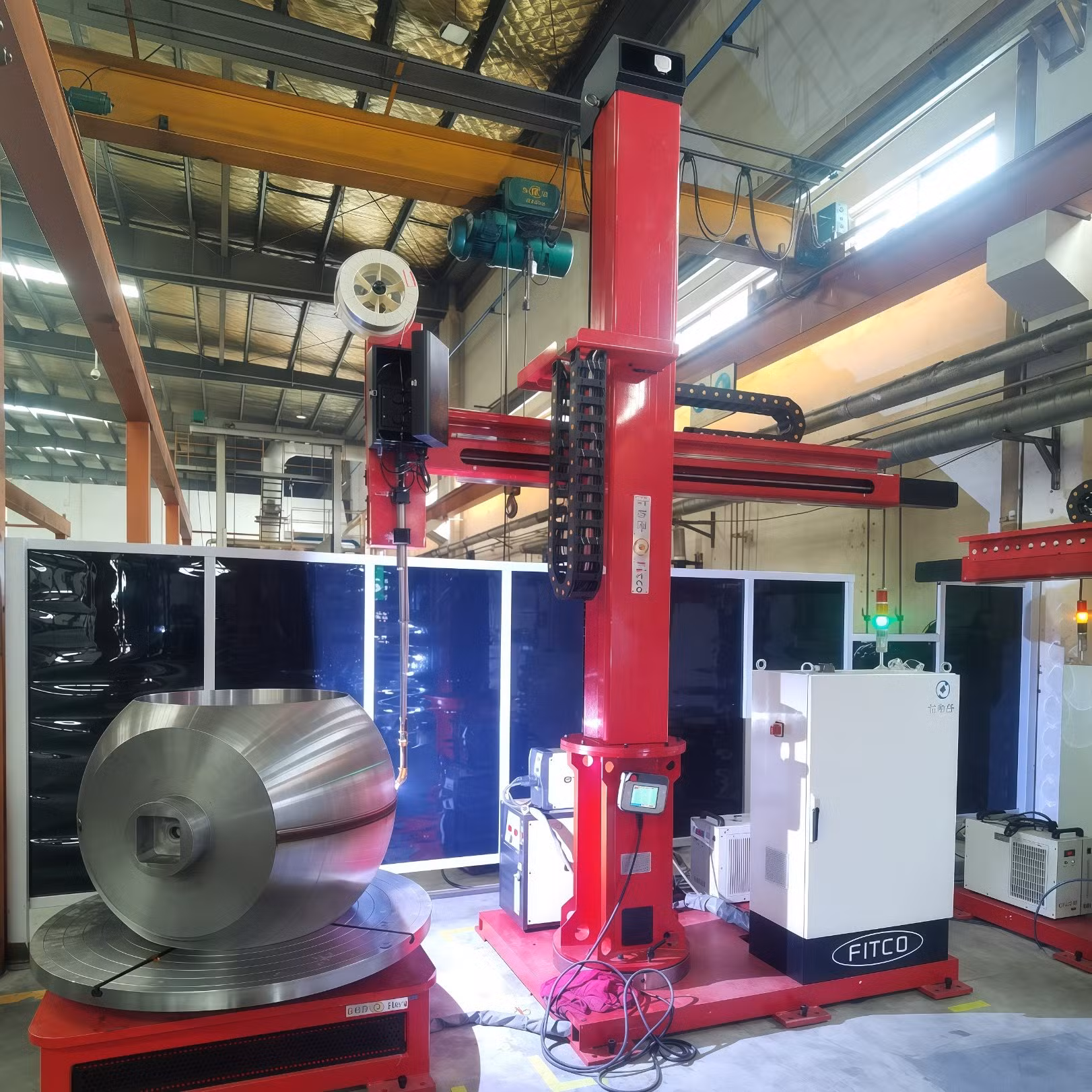

FIT-VCS-IV-E Automatic Hot-Wire TIG Vertical Overlay Cladding MachineRequest Quote
