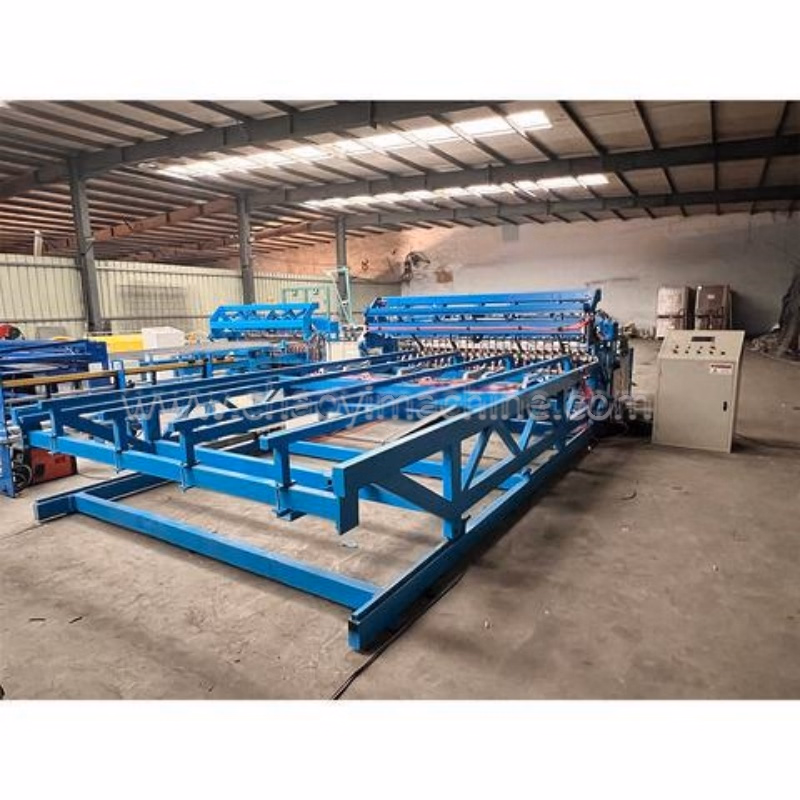

Advanced Automatic Wire Mesh Welding Machine with Precision Control Product Description I. The pictures of Mesh Welding Machine The welded wire mesh machine adopts numerical control synchronous control technology.

Both the welding time and the individual control welding time are composed of a PLC digital programming system.

The input panels are either touch screens or keyboards, making the operation more in ntage of this control is that it can produce over 30 different sizes of mesh holes between the warp and weft on the same mesh surface.

The welding adopts a new type of highly efficient water-cooled welding transformer, which expands the range of welding wire diameters. The net pulling is controlled by a servo motor, which not only improves the accuracy of the grid but also ensures the adjustability of the distance between the weft wires.

Product Parameters II.

The specifications of Mesh Welding Machine DNW-5 DNW-5-1 Wire diameter 5.0-12.0mm Wire diameter 5.0-10.0mm Weft spacing 25-300mm Weft spacing 25-300mm Warp spacing 100-300mm Warp spacing 50-300mm Welding width 2500mm Welding width 2500mm Welding speed 40times/min Welding speed 55times/min Welding point 26 Welding point 51 Warp form Precut wire Warp form Precut wire Weft form Precut wire Weft form Precut wire Rated voltage 380V Rated voltage 380V Rated power 180KVA*13 Rated power 160KVA*17 Note: Special type can be made according to client's requiment.

The rated voltage can be made as your requirement. III. The details of Mesh Welding Machine 1.Install: The Mesh Welding Machine need not install the anchor bolt, only need to put on the ground of plant. 2.Adjust: The weft wire space and warp space will be adjusted as your requirement.

All of the debugging working will be done in the factory manufacture by our engineers. We will send the photos and video of the mesh machine to you. 3.Control systerm: PLC Control Systerm 4.Machine transformer: 120KVA, 160KVA, 180KVA, 200KVA, depened the machine wire diameter.

5.Machine cooling device: Water colling 6.Machine accessories: Wire straightening and cutting machi ne. IV.The features of Mesh Welding Machine A. This equipment is the mechanical electronic computer integration advanced welds the net equipment B . the organzine may adjust may ap
